Sausage and Ham Manufacturing
Twist Linker
PR-360
Automatic Sausage Portion Twister
●The sausage twisting process can be automated by connecting it to the designated hydraulic stuffer.
●The potion size is 15g or more and can be set freely.
●Perfect for minced meat (coarse meat).
●The number of twists, nozzle speed and pressure (speed) can be easily adjusted on the digital touch panel.
●Can choose whether to have a twist.
●Since it is compact and equipped with casters, it can be easily attached to and removed from the stuffer.
●Can handle natural bowel, collagen and artificial casings.
PR-360 Specifications
| Machine Dimensions | W731 x D574 x H1470mm |
|---|---|
| Machine Weight | 73kg |
| Motor Capacity | 0.9kW |
| Standard Enclosed Nozzles | φ12mm (Length 250mm) φ15mm (Length 285mm) φ17mm (Length 285mm) |
| Optional Nozzles | φ10.4mm (Length 250mm) φ20mm (Length 285mm) φ25mm (Length 285mm) |
*The specifications are subject to change without notice for product improvement.
Hydraulic Stuffer
FC-12 FC-20 FC-30
●Lid lock function makes it easy to open and close the lid.
●New adjustable piston system that operates by automatic decompression, allowing easy pressure adjustment (speed) for all types of filling.
●The foot lever switch system (operated by knee) makes work easier and more productive.
●It is made of aluminum alloy and stainless steel and has excellent corrosion resistance and durability.
●The cylinder is made of stainless steel and all food contact areas (food zone) are washable.
●The material is extruded smoothly so there is no heating or discoloration.
●The piston can be removed for easy cleaning.
●One-touch nozzle replacement. (Included nozzle diameter: φ12mm, φ20mm, φ30mm)
FC-12 Specifications
| Machine Dimensions | W421 x D429 x H1050mm |
|---|---|
| Machine Weight | 70kg |
| Motor Capacity | 0.55kW |
| Filling Capacity | 12L/ times |
| Nozzle Diameter | φ12mm, φ20mm, φ30mm |
FC-20 Specifications
| Machine Dimensions | W435 x D537 x H1107mm |
|---|---|
| Machine Weight | 90kg |
| Motor Capacity | 0.92kW |
| Filling Capacity | 20L/ times |
| Nozzle Diameter | φ12mm, φ20mm, φ30mm |
FC-30 Specifications
| Machine Dimensions | W492 x D576 x H1203mm |
|---|---|
| Machine Weight | 134kg |
| Motor Capacity | 1.29kW |
| Filling Capacity | 30L/ times |
| Nozzle Diameter | φ12mm, φ20mm, φ30mm |
*The specifications are subject to change without notice for product improvement.

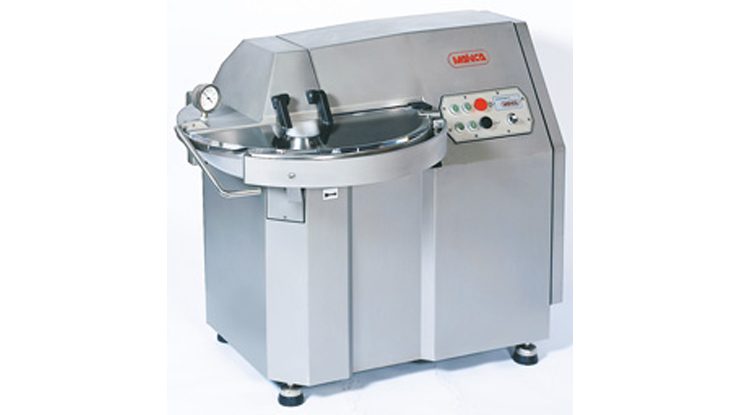

Silent Cutter
CM-21/41
●Compact and functional, easy to operate and easy to use. High speed rotation of 3,000r.p.m. allows for simultaneous cutting and mixing of the dough and produces a homogeneous dough in a short time without heat.
●Interlocking mechanism that automatically stops the blade when the lid is opened
●Comes with meat thermometer
●It can be used as a high quality mincer mixer by replacing the blade. (Standard: comes with 6 blades)
CM-21 Specifications
| Machine Dimensions | W1030 x D840 x H980mm |
|---|---|
| Machine Weight | 165kg |
| Motor Capacity | Knife 3.9kW Bowl 0.18kW |
| Bowl Capacity | 22L/ times, High speed 20 times/min, Low speed 10 times/min |
| Knife | 6 pieces, High speed 3000 times/min, Low speed 1500 times/min |
CM-41 Specifications
| Machine Dimensions | W1380 x D1140 x H1010mm |
|---|---|
| Machine Weight | 320kg |
| Motor Capacity | Knife 8.09kW Bowl 0.5kW |
| Bowl Capacity | 40L/ times, High speed 20 times/min, Low speed 10 times/min |
| Knife | 6 pieces, High speed 3000 times/min, Low speed 1500 times/min |
*The specifications are subject to change without notice for product improvement.

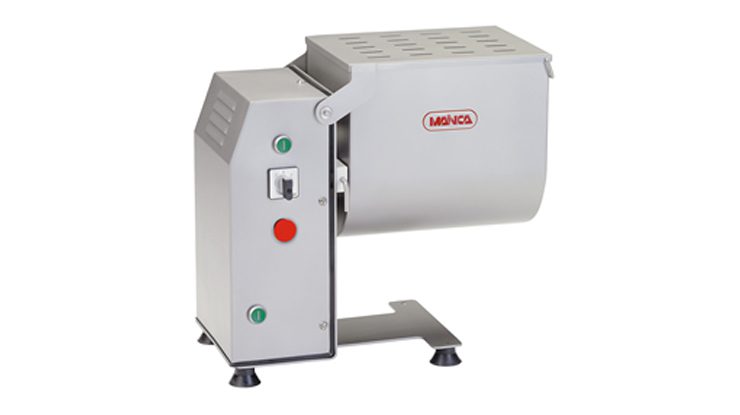

Kneader Mixer
RM-20
Very compact! Excellent performance!
●This compact tabletop mixer is ideal for making hamburgers, sausages and pates, even in small quantities with smooth and even mixing!
●The motor sound is quiet!
●Hygienic with all stainless steel!
RM-20 Specifications
| Machine Dimensions | W560 x D310 x H500mm |
|---|---|
| Machine Weight | 29kg |
| Motor Capacity | 0.24kW |
| Bowl Capacity | 20L |
*The specifications are subject to change without notice for product improvement.

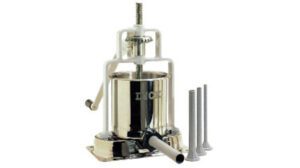

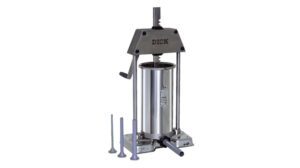

Sausage Stuffer
DICK-6L/9L/12L/15L
●Compact manual stuffer for making homemade sausages easily in the store
●Easy to handle. Mobile operation is possible
●New exhaust pistons and valves for complete deaeration and a two-speed configuration
●The robust structure allows easy operation and cleaning. (US/USDA approved machine)
DICK-6L Specifications
| Machine Dimensions | W330 x D578 x H524mm |
|---|---|
| Machine Weight | 14kg |
| Filling Capacity | 6.8L/ times |
| Enclosed Nozzle Diameter | φ12mm |
DICK-9L Specifications
| Machine Dimensions | W400 x D618 x H985mm |
|---|---|
| Machine Weight | 23.5kg |
| Filling Capacity | 9L/ times |
| Enclosed Nozzle Diameter | φ18mm |
DICK-12L Specifications
| Machine Dimensions | W400 x D618 x H1158mm |
|---|---|
| Machine Weight | 25kg |
| Filling Capacity | 12L/ times |
| Enclosed Nozzle Diameter | φ22mm |
DICK-15L Specifications
| Machine Dimensions | W400 x D618 x H1355mm |
|---|---|
| Machine Weight | 26kg |
| Filling Capacity | 15L/ times |
| Enclosed Nozzle Diameter | φ30mm |
*The specifications are subject to change without notice for product improvement.

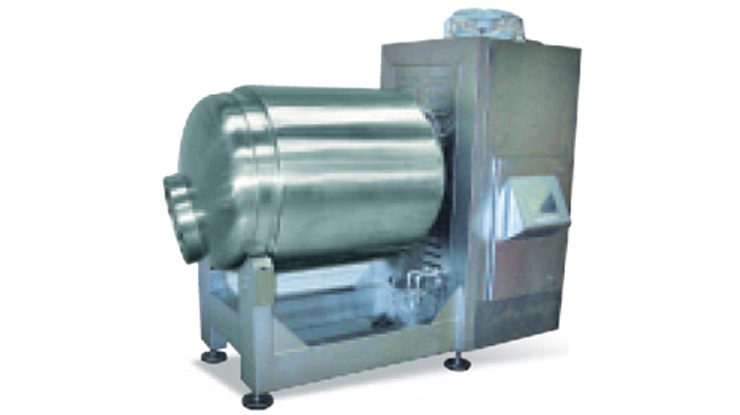

Vacuum Tumbler with Cooling Unit
CVT-750
●Cooling function is included as standard. Reliable and durable domestic vacuum tumbler.
●Can set the tank temperature, time, vacuum pressure and continuous to intermittent vacuum on the Japanese touch panel.
●Vacuum and ventilation is provided by a snorkel mounted inside the tank, so there is no vacuum hose shown outside the tank.
CVT-750 Specifications
| Machine Dimensions | W1175 x D2367 x H2030mm |
|---|---|
| Machine Weight | About 1100kg |
| Electrical Capacity | 7.71kW |
| Processing Capacity | About 380kg |
| Tank Capacity | 750L |
*The specifications are subject to change without notice for product improvement.
For any inquiries regarding product information, technical consultation, and purchasing methods, please contact:
FRESH FROZEN SOLUTIONS LIMITED
Address: Level 1, 26 St Heliers Bay Road, St Heliers, Auckland, New Zealand
Hotline: +64 29 125 7575
