PC-3600 Cyclone - Pre-dusting Machine - FRESH FROZEN

PC-3600 Cyclone – Pre-dusting Machine

PC-3600 Cyclone – Pre-dusting Machine

PRE-DUSTING MACHINE

PC-3600 Cyclone type



PC-3600 Cyclone-AⅡ (A2) type

Set before breading process

This is an automatic machine that coats flour thinly and evenly before the preparation of pork cutlets or fried fish.

[PC-3600 type cyclone] supports 1 to 2 row flow.

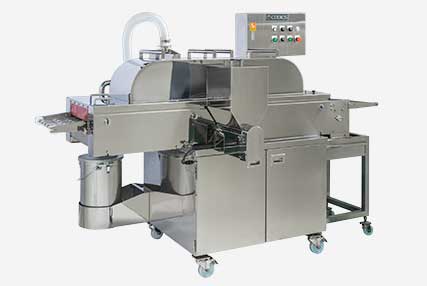

The [AII (A2) type] supports 3 to 4 row flow and can be connected to the upstream process of the [PB-3600FSA-AII type].

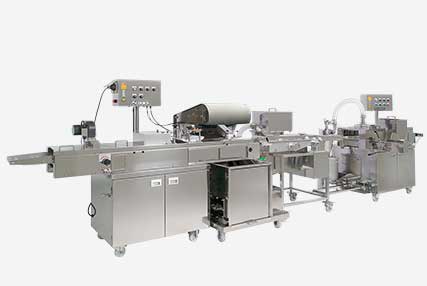

PC-3600 Cyclone type



Features

  • The built-in powder recovery device prevents powder from flying outside the machine, allowing you to use the machine in a hygienic manner.
  • There is no need for space to install a separate dust collector, so it can be installed in a small space.
  • It can be connected to the breading machine in a straight line, allowing for the creation of a space-saving, efficient production line.
  • It is designed to supply only the amount of powder needed, so there is no waste of powder.
  • Anyone can easily disassemble, clean, and assemble the product without using any tools.
  • This automatic flour spreading device can be used in the pre-breading process to produce a wide variety of products, including pork cutlets, fried fish, and minced meat cutlets.



Material

SUS 304



Machine installation dimensions

Opening: W 1,120mm

Depth: D 2,250mm

Height: H 1,585mm



Electric capacity 3-phase 200V 0.66kW



Powder supply method

Timer Intermittent Supply



Flying powder recovery method

Cyclone Tower

Built-in type



For any inquiries regarding product information, technical consultation, and purchasing methods, please contact:

FRESH FROZEN SOLUTIONS LIMITED

Address: Level 1, 26 St Heliers Bay Road, St Heliers, Auckland, New Zealand

Hotline: +64 29 125 7575
