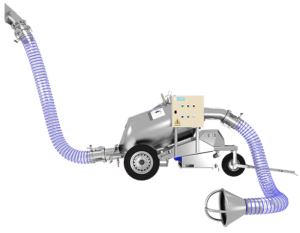

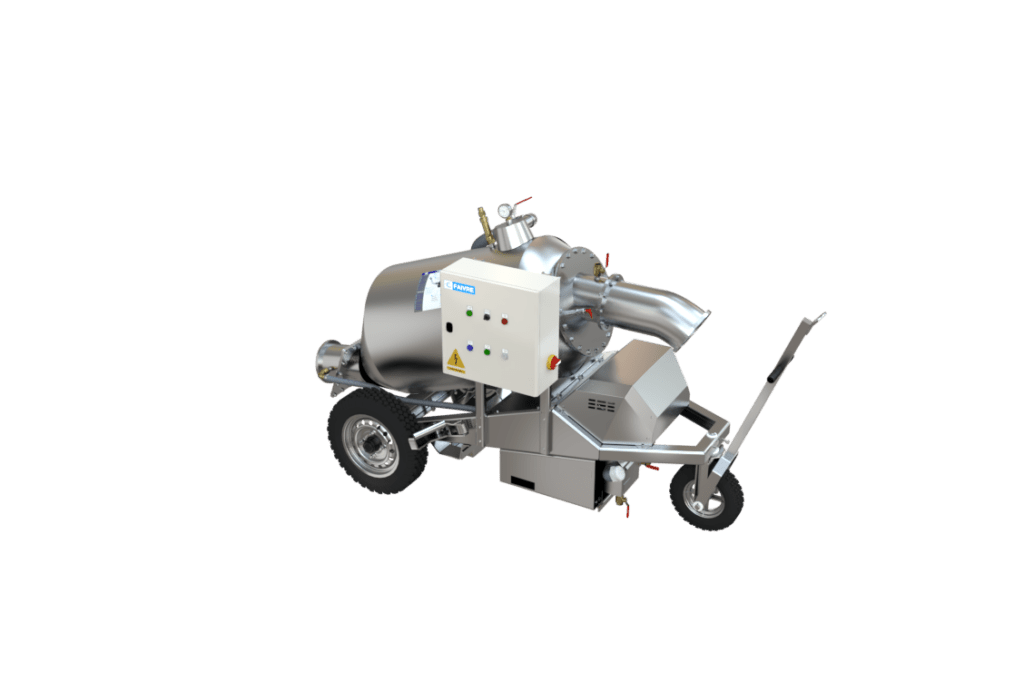

PESCAVAC 50 (8″) VACUUM PUMP
We have developed a vacuum pump model specially adapted to the handling and harvesting of large fish. The Pescavac 50 fish pump is capable of transferring fish of average weight 3 kg (salmonids) very gently.
Built entirely in stainless steel (AISI 316 L), it is efficient, robust and reliable, and can be used in both fresh and salt water. In addition, its compact frame and wide wheels make it easy to handle.
Fish pumps – Pescavac 50 vacuum pump (8″)
PRODUCT DESCRIPTION
High performance

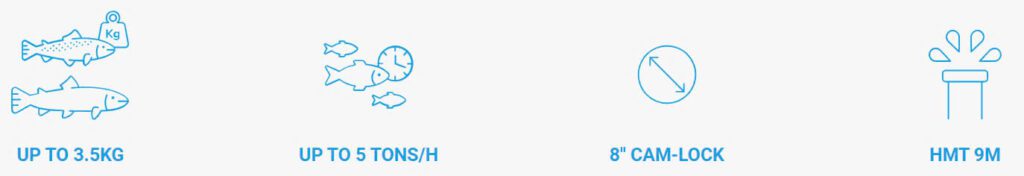

Optimized by powerful digital simulation tools, the performance of the Pescavac 50 fish pump lives up to its design. Its 9 m of HMT (total manometric height) allow it to easily adapt to any situation.

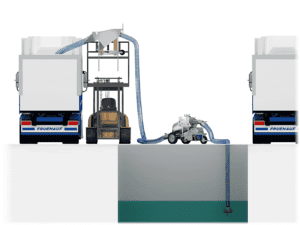

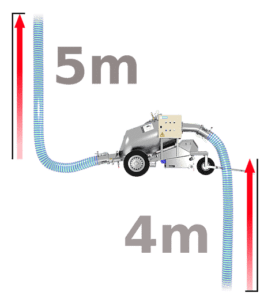

Its thrust reversal system allows it to discharge at a height of 5 m and to suck at a depth of 4 m, which makes it practical for loading a truck, the pump remaining on the ground.

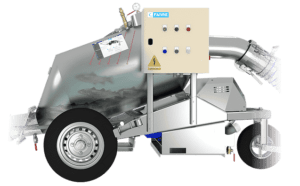

Vacuum, suction and discharge system
We have developed an exclusive electrically controlled system for the 4-way valve,
which allows the “vacuum” to be transformed into a “thrust” very gently.
In fact, controlling the speed of the 4-way valve allows the flaps to be closed and opened gentlyz
to avoid injuring fish that might pass under them at that precise moment.

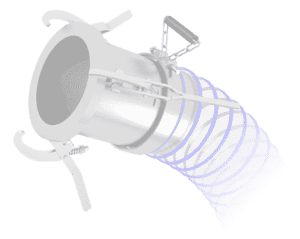

Easy fitting
Developed by our design office, our quick-attach “Easy fitting” connector has been specially designed to simplify and secure the installation of pipes on the Pescavac 50 fish pump.

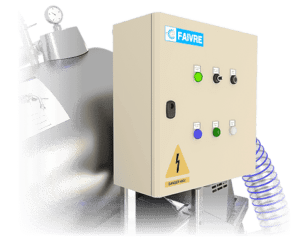

Simplified electrical panel
Only 2 buttons, on/off and a potentiometer are enough to operate the Pescavac 50.
It is very simple to start up.

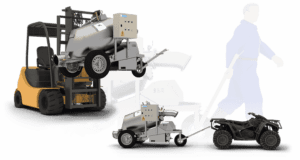

Handy and practical
The chassis has all the elements necessary for practical and easy handling,
large inflatable wheels for optimal grip on smooth or uneven ground,
drawbar with handles and towing ring for pushing manually or towing with a machine,
as well as 2 forklift pockets for transport with a forklift.
Fish pumps – Pescavac 50 vacuum pump (8″)

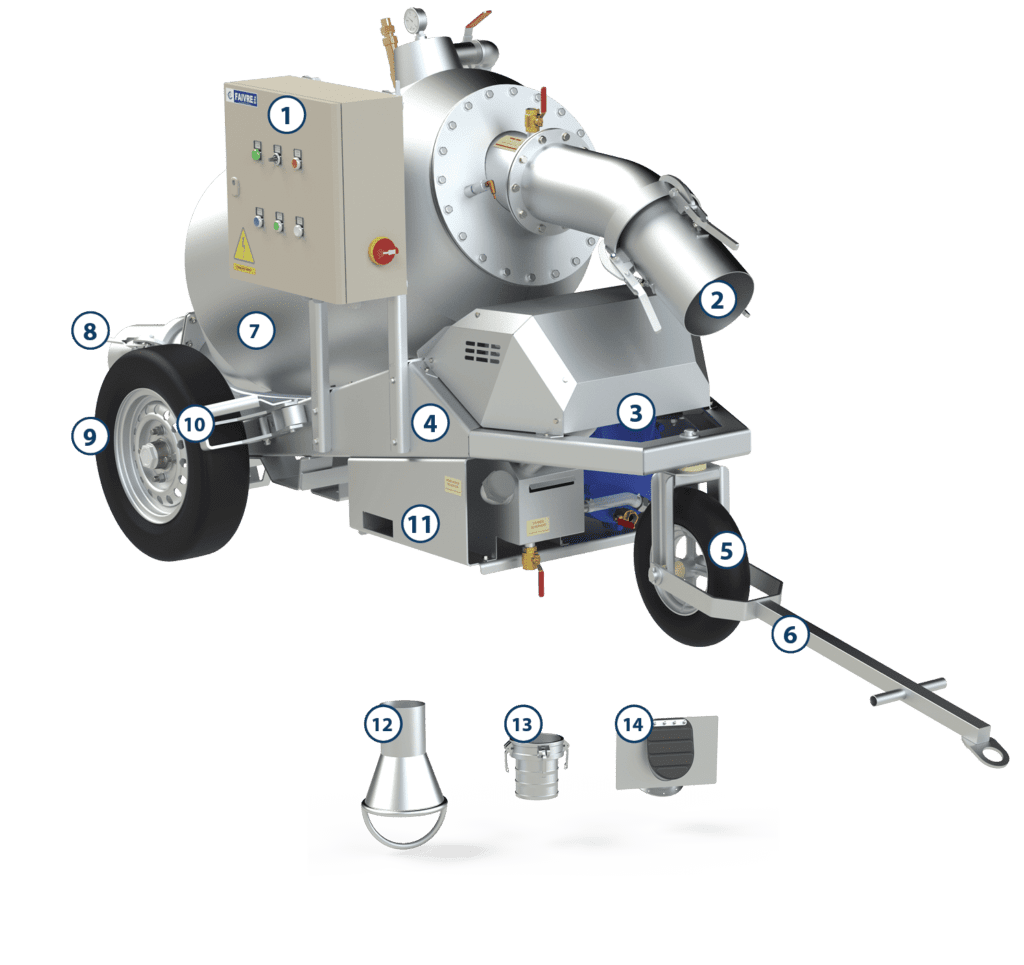

PRODUCT FEATURES
- Electrical control box
- Suction hose (Ø 200 mm – Ø 8 inches) with 3-claw connection
- AISI 316L stainless steel vacuum pump (5.5kw)
- 316L stainless steel chassis
- Inflatable wheel
- Timon
- AISI 316L stainless steel tank
- Discharge pipe (Ø 200 mm – Ø 8 inches) with 3-claw connection
- Inflatable wheels
- Manual braking system
- Forklift passage
- Suction cone in AISI 316L stainless steel
- Female Camlock (Ø 200 mm – Ø 8 inches)
- Outlet flap (Ø 200 mm – Ø 8 inches)
Fish pumps – Pescavac 50 vacuum pump (8″)
PRODUCT OPTIONS
Pipes
The fish pump is supplied as standard with a suction cone.
Optionally, flexible, semi-transparent hoses are available in lengths of 5 or 10 m:
Ø 8″ (Ø 200 mm) pipes with male and female claw connectors mounted at each end of the pipe
ref: PP0803FM length 5 m
ref: PP0804FM length 10 m
Water separator hopper
The water separator hopper is an important element for the proper functioning of a fish pump. To be effective, the water separator hopper must have a particularly studied design. Light and easy to handle with its 2 inflatable wheels, it is made of marine aluminum. It has a grid with a spacing of 5mm and can evacuate up to 1000m3/h of water.
The “Dewat 40” is suitable for the Pescavac 50 pump.
Ref.: TD0801
