PESCAMOTION 50 (10″) FISH PUMP

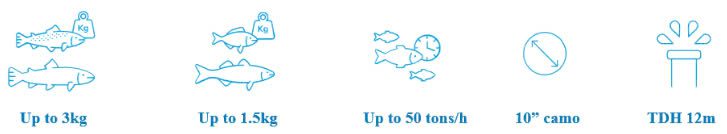

Fish pump ideal for loading and transferring your fish at high speed up to 3 kg on average (salmonids). The Pescamotion 50 fish pump allows you to safely handle fish with a 10″ hose, or 250 mm in diameter.
Fish Pumps – Pescamotion 50 Fish Pump (10″)
PRODUCT DESCRIPTION
High performance
Optimized by powerful digital simulation tools, the performance of the Pescamotion 50 fish pump matches its exceptional design.
Its 12 m of HMT (total manometric height) including 4 m of max. suction height allow it to adapt to any situation.
Ultra fast priming
This fish pump has been designed for simple, fast and efficient priming.
That is why we have equipped the Pescamotion 50 fish pump with a real liquid ring vacuum pump, in order to fill the hose and pump body very quickly.
This stainless steel priming pump is very durable.

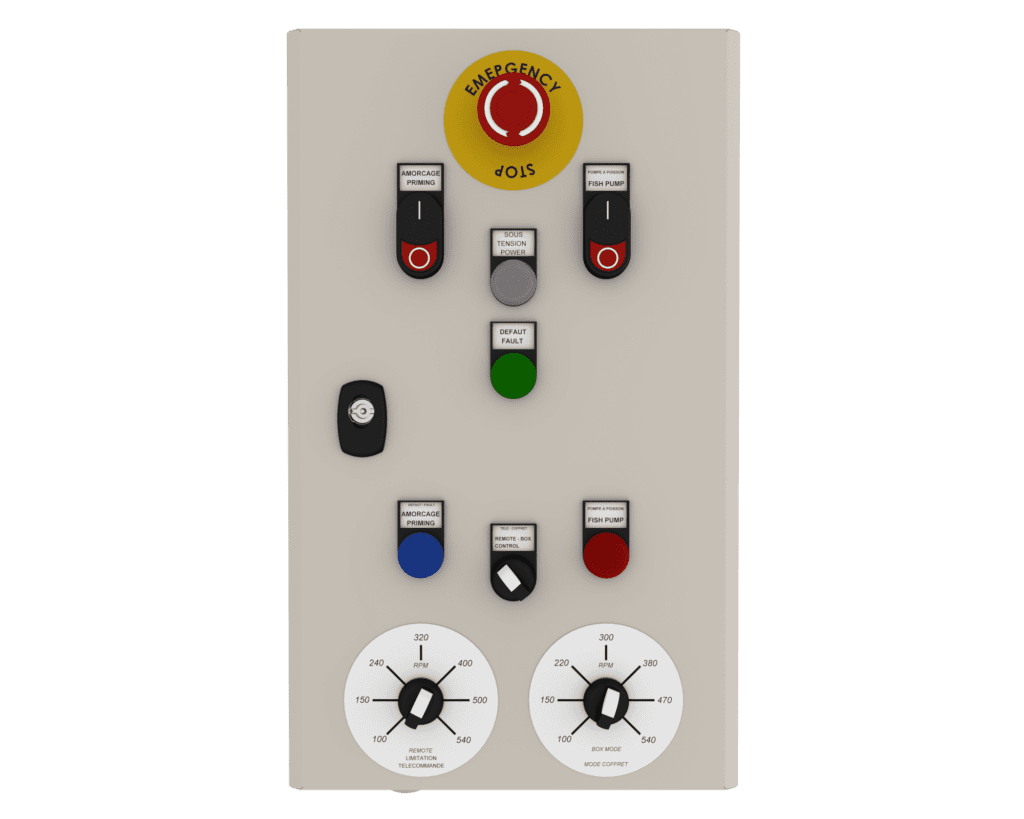

Electrical box
The control box is perfectly accessible from the side of the fish pump.
Very easy to use, it also allows you to take complete control of the pump. Only 2 buttons: on-off and a potentiometer for varying the rotor speed are enough to operate the Pescamotion 50 fish pump.
Fish Pumps – Pescamotion 50 Fish Pump (10″)

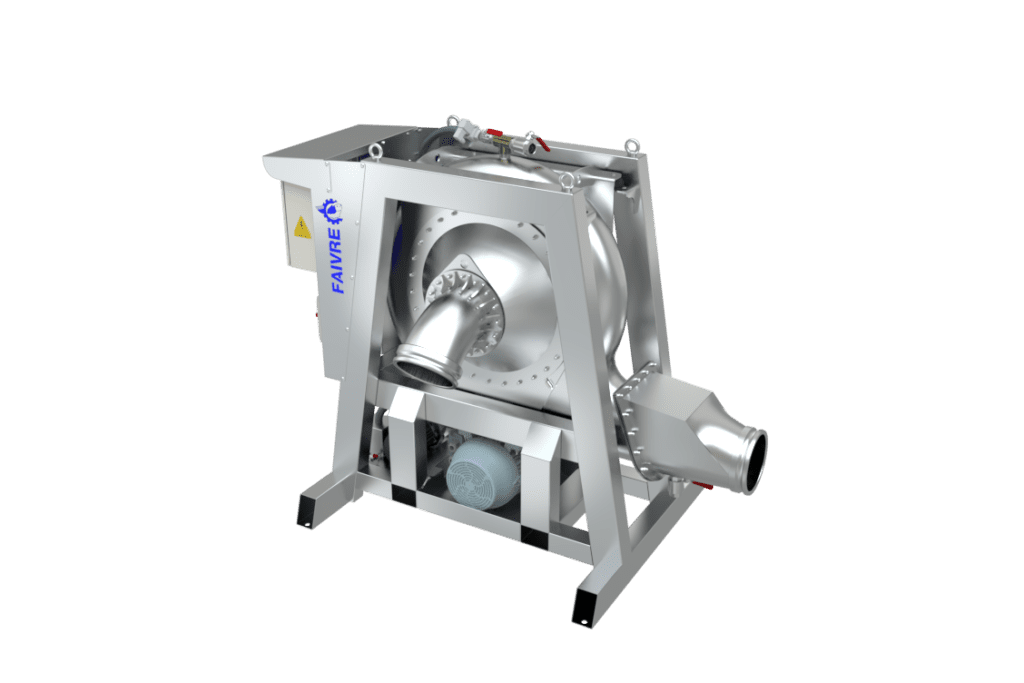

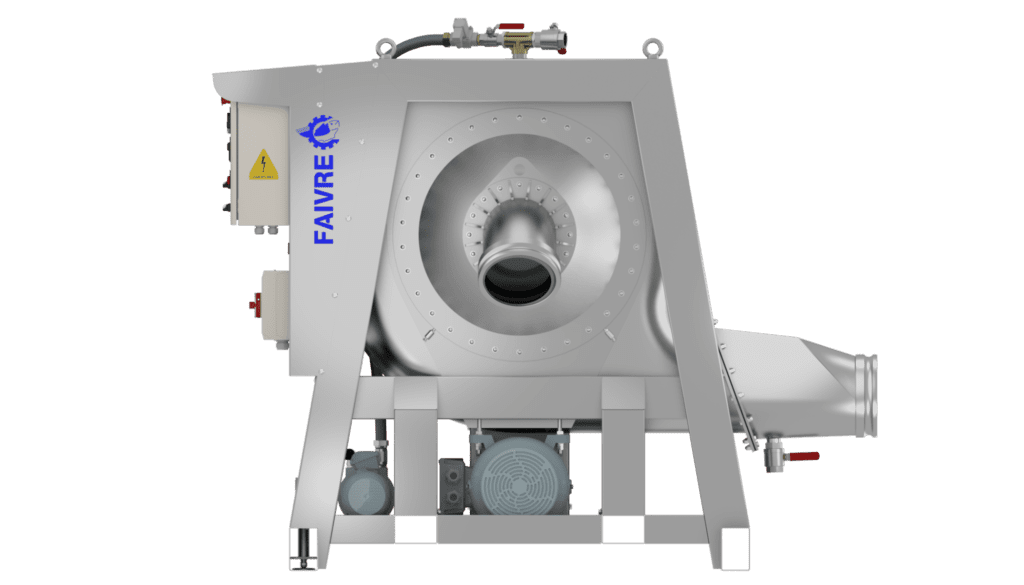

PRODUCT FEATURES
1. Control box with speed variator.
2. Adjustable suction elbow in 316L stainless steel (Ø 10 inches – 250 mm male camlock)
3. Main electric motor 18.5kW
4. Pump body in AISI 316L stainless steel
5. 316L stainless steel pump frame
6. 316L stainless steel valve box
7. Pump outlet (Ø 10 inches – 250 mm male camlock)
8. Priming pump (1.5kw)
Fish Pumps – Pescamotion 50 Fish Pump (10″)
PRODUCT FEATURES
Pipes
The fish pump comes standard with a suction cone.
Two types of hoses are available: heavy duty rubber hoses or semi-transparent PVC hoses in 5m length for suction and discharge.
Ø 10″ (Ø 250 mm) pipes with male and female camlock fitted at each end of the pipe
Ref.: PP1003FM length 5 m
Reducers 10”- 8”
A 10″- 8″ reduction on the inlet and outlet of the fish pump allows you to adapt to all working situations.
Ref.: PI100801

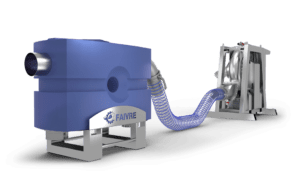

Water separator hopper
The water separator hopper is an important element for the proper functioning of a fish pump.
It is essential to separate the water when loading trucks or transferring fish.
The “Dewat 50” adapted to the Pescamotion 50 pump.
Its water separation grid has 6mm spacing between each wire.
Ref.: TD1001H

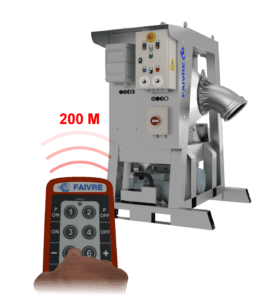

Remote
Optionally, a compact and waterproof remote control is available.
With a range of 200 m outdoors, it allows you to take complete control of the fish pump.
Ref.: PH00REM2
