Labor-saving Automation

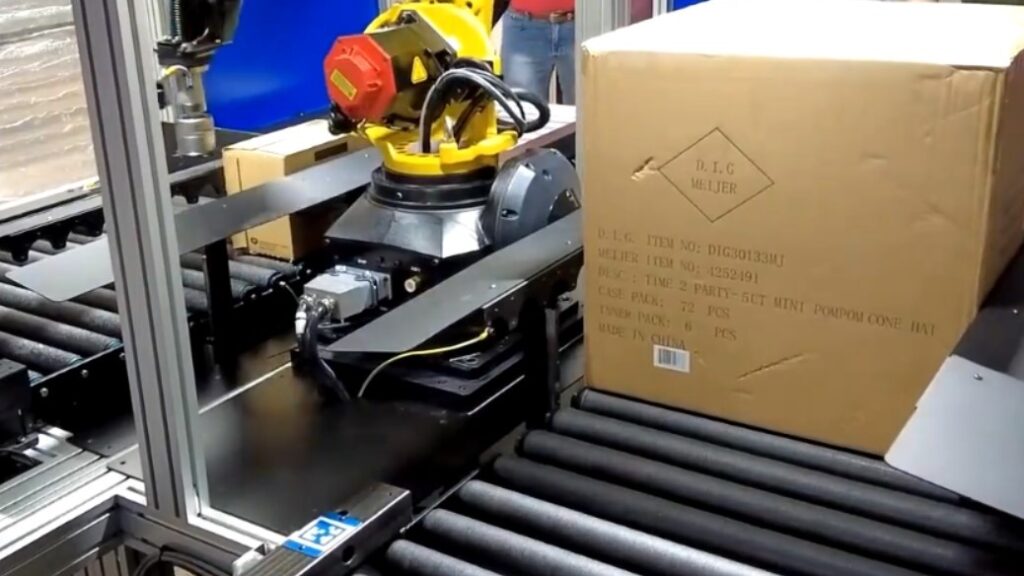

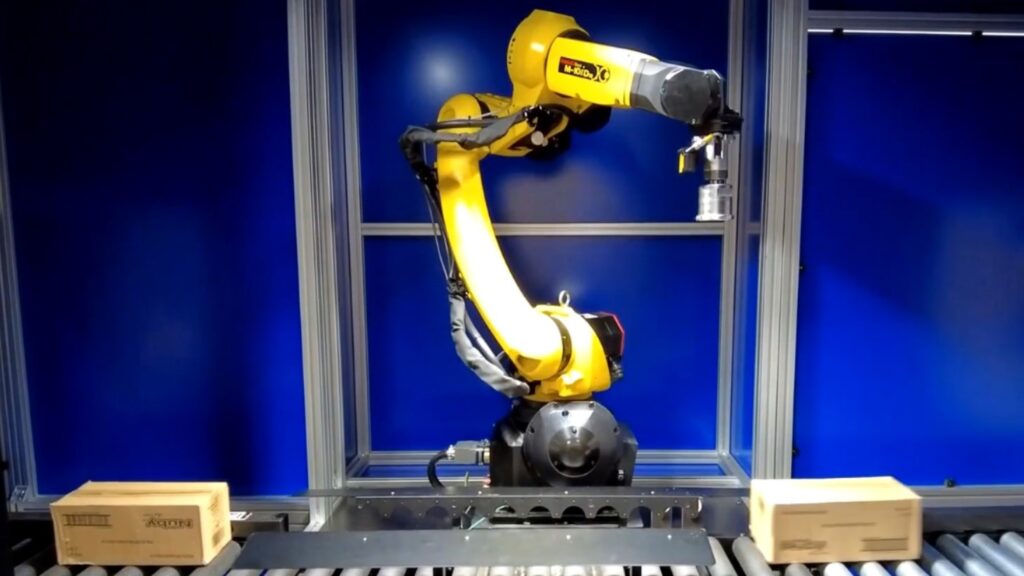

Automated Box Opening Machine
M1 / M1D
ABOT
Accurate unpacking of carton boxes of various sizes
Cutting depth can be set in 0.1mm increments and always maintains constant cutting depth and cuts accurate cutting lines.
High-speed processing of up to 450 boxes/hour (M1) to 850 boxes/hour (M1D)
By adopting a unique system that instantly calculates the optimum cutting line and a highly reliable FANUC robot arm, we have achieved a processing speed that surpasses domestic devices.
Automatic detection of mixed size boxes
Unique image analysis system automatically distinguishes workpieces. The operator doesn’t have to worry about anything, just feed the boxes onto the conveyor.
Capable of handling deformed boxes
The optimal cutting line is always calculated even for deformed boxes such as dents and crushes.
Expandable after installation
Expandable to dual lines from 450 boxes/hour to 850 boxes/hour after installation to meet increased production volume and production increase.
ABOT M1 / M1D Specifications
| Machine Dimensions | ABOT M1:W3128 x D2030 x H2083mm ABOT M1D:W3128 x D2893 x H2083mm |
|---|---|
| Machine Weight | ABOT M1:1650kg ABOT M1D:2450kg |
| Operating Voltage | 230V Y-axis actuator: 0.2kW Z-axis actuator: 0.1kW For conveyor: 0.09kW |
| Possible Box Opening Dimensions | Width: 230~750mm[*1000mm] Depth: 100~600mm[*660mm] Height: 100~600mm[*660mm] *Extension option is required |

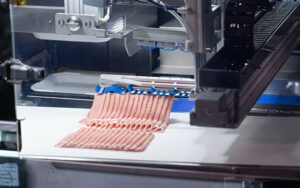

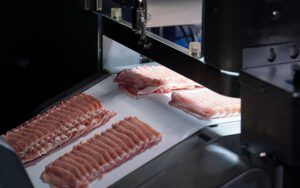

Automatic Dishing Robot
CM-230
SCORPION
●Precise dish up.
●No slicer modifications required.
●Compact installation space.
●Easy to install with immediate results.
●Simple design, easy to clean.
CM-230 Specifications
| Machine Dimensions | W1830 x D1150 x H1700mm |
|---|---|
| Machine Weight | 380kg |
| Power Consumption | 0.096kW (50Hz/60Hz no load) |
| Possible Dish Up Dimensions | Length: Maximum 230mm Width: 100mm~160mm Slice thickness: 1mm~15mm (varies depending on number of pieces) |
| Support Tray Sizes | Length: 120mm~280mm Width: 196mm~220mm Depth: 20mm~35mm |
| Processing Power | 800 pack/hr (400 pack/hr x 2 lines) *130g 7 pcs 400 pack/hr (200 pack/hr x 2 lines) *230g 15 pcs 270 pack/hr (135 pack/hr x 2 lines) *350g 22 pcs 210 pack/hr (105 pack/hr x 2 lines) *450g 28 pcs *Varies depending on the thickness, texture and number of pieces of the meat |
| Maximum Dish Up Weight | 600g (possible dish up weight at a time) |
| Dish Up Applicable Temperature | -1℃~+5℃ *Varies slightly depending on the thickness, texture and shape of the meat |
| Air Supply | 0.5MPa 36.3L/min tube outer diameter 10mm |
Poultry plastic bag automated unseal and dehydration machine
AIR-2K
AIR-Kei
●Automatic loading.
●Significantly reduce the risk of contamination.
● Automatic ejection of plastic bag.
●Automatic dehydration.
●For automation and efficiency.
●Easy operation.
AIR-2K Specifications
| Machine Dimensions | Unseal unit+Dehydration unit: W2646 x D2750 x H1550mm Unseal unit: W1800 x D1910 x H1550mm Dehydration unit: W1420 x D1851 x H1452mm |
|---|---|
| Machine Weight | Unseal unit+Dehydration unit: About 685kg Unseal unit: About 455kg Dehydration unit: About 230kg |
| Motor Capacity | For loading conveyor: 0.09kW For receiving conveyor: 0.09kW For lifting conveyor: 0.09kW For dehydration conveyor: 0.09kWx2 |
| Power Consumption | Unseal unit: 0.18kW (50Hz/60Hz no load) Dehydration unit: 0.27kW (50Hz/60Hz no load) |
| Processing Power | Maximum 1800kg/hr (Maximum 900 bags/hr) |
| Possible Unsealing Dimensions | Maximum W280 x D230 x H50mm |
| Possible Unsealing Weight | 2kg |
| Unsealing Applicable Temperature | 0℃~4℃ (core temperature) *Varies depending on the condition of the bag and contents |
| Air Supply | Unseal unit+Dehydration unit: 0.6MPa 810L/min tube outer diameter 12mm Dehydration unit only: 0.2MPa 1.0L/min tube outer diameter 6mm |
For any inquiries regarding product information, technical consultation, and purchasing methods, please contact:
FRESH FROZEN SOLUTIONS LIMITED
Address: Level 1, 26 St Heliers Bay Road, St Heliers, Auckland, New Zealand
Hotline: +64 29 125 7575
