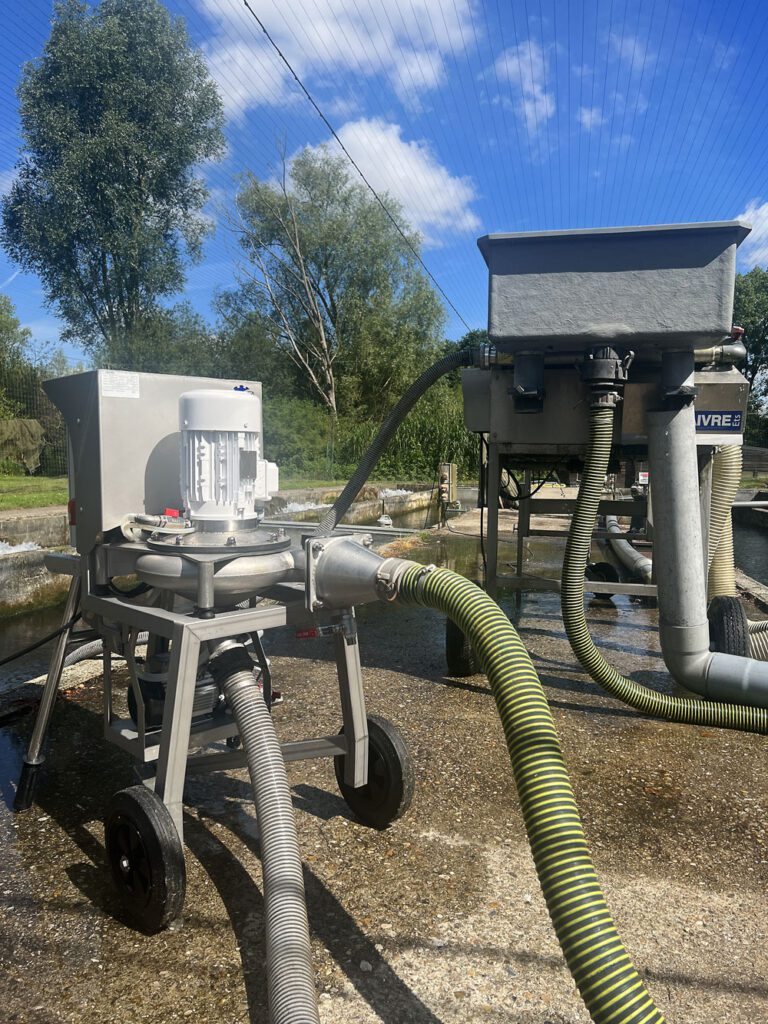

FAIVRE – Fish pumps – Pescamotion 10 (2.5″) fish pump
Fish pump ideal for hatcheries, to sort, load or transfer your fish up to 40 g (salmonids). The Pescamotion 10 fish pump allows you to safely transfer fish with a 2.5″ hose, or 63 mm in diameter. Its AISI 316L stainless steel body makes it resistant to corrosion.
Efficient, compact and lightweight with its stainless steel chassis on wheels, it is very easily transportable.
Fish Pumps – Pescamotion 10 Fish Pump (2.5″)
PRODUCT DESCRIPTION
High performance

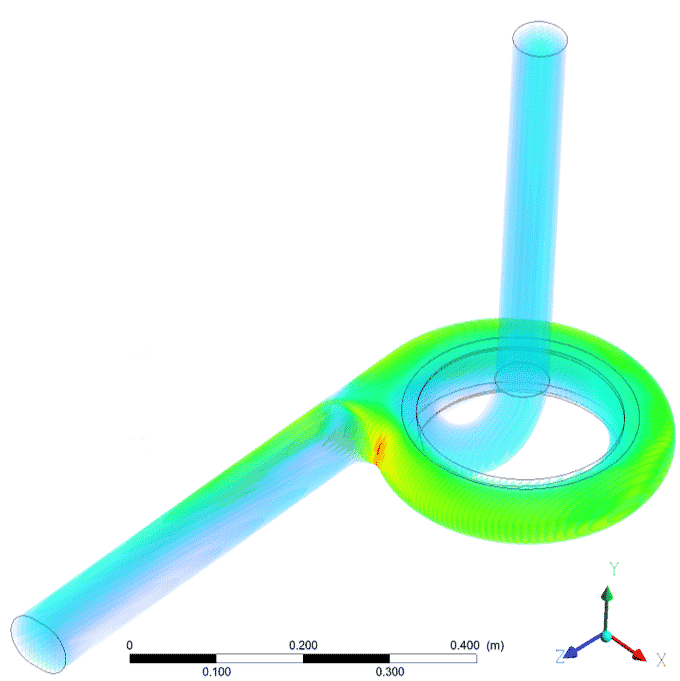

Optimized by powerful digital simulation tools, the performance of the Pescamotion 10 fish pump matches its exceptional design.

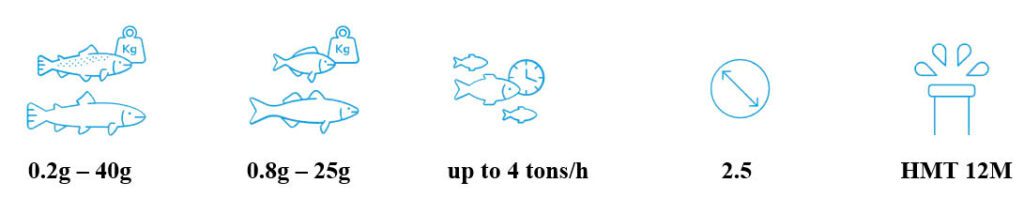

Its 12 m of HMT (total manometric height) including 5 m of max. suction height allow it to easily adapt to any situation.
Direct drive
With our exclusive “Direct drive” system, the impeller is directly held by the motor. No maintenance is required to manage belt tension or bearing lubrication as in a standard fish pump on the market. The “Direct drive” system significantly reduces the number of moving parts.
Practical and handy
Weighing only 92 kg on the scale, our fish pump is one of the lightest on the market.
Perfectly balanced on its wheelbarrow trolley, it is easy to move, even over long distances.
Compact at 67 cm wide, it easily passes between hatchery doors and ponds. Its handles can be folded down, making the fish pump even more compact.
The Pescamotion 10 fish pump can also be safely lifted or handled by a forklift thanks to its forklift slot.

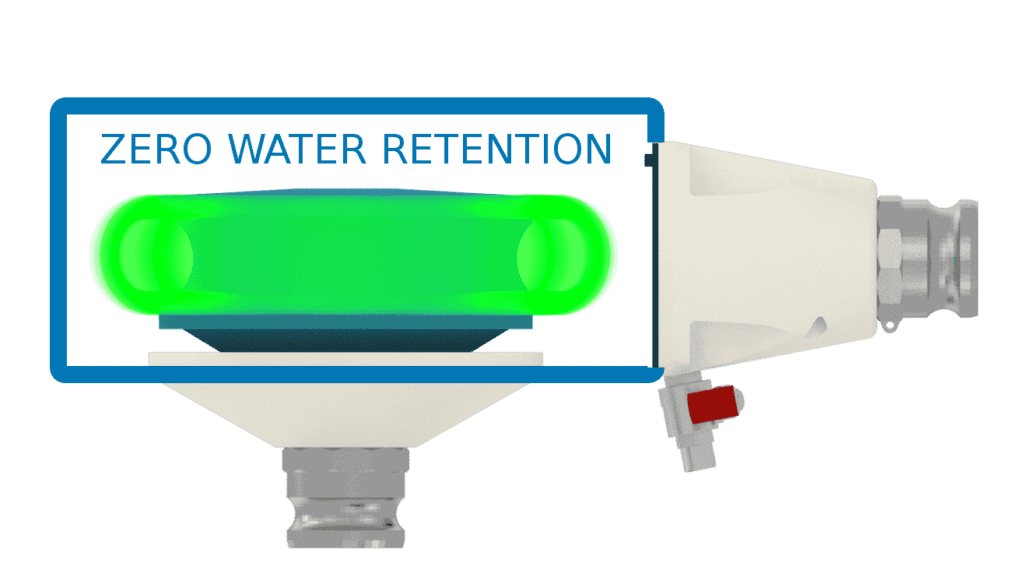

Hygiene and disinfection with its “Zero Retention” body
Since the Pescamotion 10 fish pump is intended for hatcheries, it has been designed from the outset to be very easy to clean and hygienic, which is why the fish inlet tip is positioned on the underside of the pump body to facilitate flow and thus have zero water retention in the pump body.
Between 2 uses, the pump body empties completely and dries, which guarantees impeccable hygiene. A tapping at the back of the fish pump facilitates the injection of disinfectant or any other product during or after pumping.
Fish Pumps – Pescamotion 10 Fish Pump (2.5″)
PRODUCT FEATURES
- IP55 1.5 kW pump motor
- Pump body in AISI 316L stainless steel
- Pump inlet (Ø 2.5 inches – 63 mm male camlock)
- AISI 316L stainless steel frame
- Forklift passage
- Folding handles
- Electrical control box
- Rotor speed variation control
- Pump outlet (Ø 2.5 inches – 63 mm male camlock)
Fish Pumps – Pescamotion 10 Fish Pump (2.5″)
PRODUCT OPTIONS
Pipes
Semi-transparent, flexible hoses are available as an option in lengths of 5 or 10 m:
Hoses Ø 2.5″ (Ø 63 mm) with male and female camlock fitted at each end of the hose
Ref: PP0203FM length 5 m
Ref: PP0204FM length 10 m

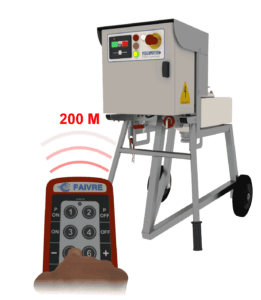

Remote
Optionally, a compact and waterproof remote control is available.
With a range of 200 m outdoors, it allows you to take complete control of the fish pump.
Ref.: PH00REM2
Fish Pumps – Pescamotion 10 Fish Pump (2.5″)
MEDIA
Link Youtube
BROCHURES
PESCAMOTION 10 (2.5″)
