Multi Slicing / Dice Cutting
Multi Slicer
SSN-180
APOLLO
Automatically adjusts the cutting width according to the height of the food!
●Three cutting functions (body width, diagonal and parallel) in one machine can be sliced!
●Continuous horizontal feeding slot.

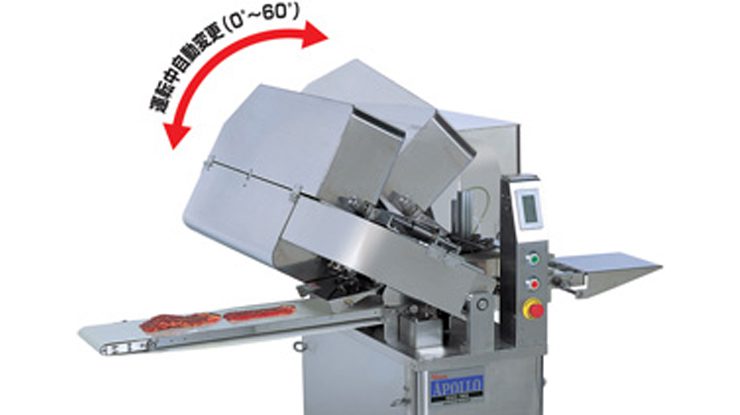

●Angle adjustment (0° to 60°) is automatically set on the touch screen!
●Shape cutting! The sliced goods are arranged on the receiving conveyor under the same shape as they are fed in!
●The whole conveyor can be washed.
●The sharpness is excellent with the round blade slice!
●Easy to clean and hygienic!
SSN-180 Specifications
| Machine Dimensions | W1400 x D1750 x H1300mm (0°) |
|---|---|
| Machine Weight | 350kg |
| Motor Capacity | For round blade 0.2kW For feeder 0.4kW (AC servo) For angle tilting 1kW (AC servo) For left and right drive 0.4kW |
| Power Consumption | 0.46kW (50Hz/60Hz no load) |
| Sliceable Dimensions | W180 x H80 x L700mm (angle 0°) W180 x H35 x L700mm (angle 60°) *Sliceable dimension varies depending on the slicing angle |
| Slicing Performance | Maximum 70 pieces/min |
| Slice Thickness | (0)~8mm |
| Applicable Temperature | -8℃~-3℃ (for fishery items) -1℃~-3℃ (for meat items) *Varies slightly depending on the thickness, texture and shape of the meat |
| Air Supply | 0.5MPa 13.1L/min tube outer diameter 8mm *Except when using the enclosed air gun |
| Diagonal Cutting Surface Angle | 0°~60° |
Conveyor
| Conveyor Dimensions | W265 (belt W200) x L1000 x H800mm |
|---|---|
| Motor Capacity | 0.09kW |
| Conveyor Speed | 0 ~ 4.2m/min |
*The specifications are subject to change without notice for product improvement.

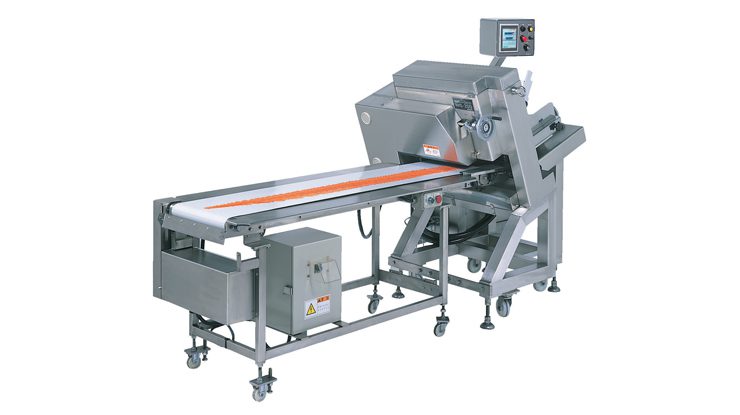

High Speed Salmon Slicer
NHS-200
The lenght of the standardly equipped conveyor is 2.0 m but the length can be changed as option
Any diagonal cut in the range of 45° to 55°
●Highest speed at 200 pieces/min.
●Suitable for thin and thick slices of other ingredients including grilled meat.
●Color touch panel display for clear operation.
●Arrangement is flexible, and intermittent feed can be set as desired!
★Stainless special blade steel is used.
●Interlocking mechanism is used for safety.
●Compact and space-saving.
NHS-200 Specifications
| Machine Dimensions | W1123 x D1380 x H1571mm |
|---|---|
| Machine Weight | 380kg |
| Motor Capacity | For round blade: 0.4kW For face plate: 0.4kW For feeder: 0.4kW |
| Power Consumption | 0.56kW (50/607Hz no load) |
| Sliceable Dimensions | W200 x H45mm |
| Slicing Performance | Maximum 200 pieces/min |
| Slice Thickness | (0)~8mm |
| Applicable Temperature | -8℃~-5℃ (for salmon) |
| Diagonal Cutting Surface Angle | 45°~55° |
Conveyor
| Conveyor Dimensions | W706 (belt W400) x L2060 x H890mm |
|---|---|
| Conveyor Weight | 85kg |
| Motor Capacity | 0.09kW |
| Conveyor Speed | 0~25m/min |

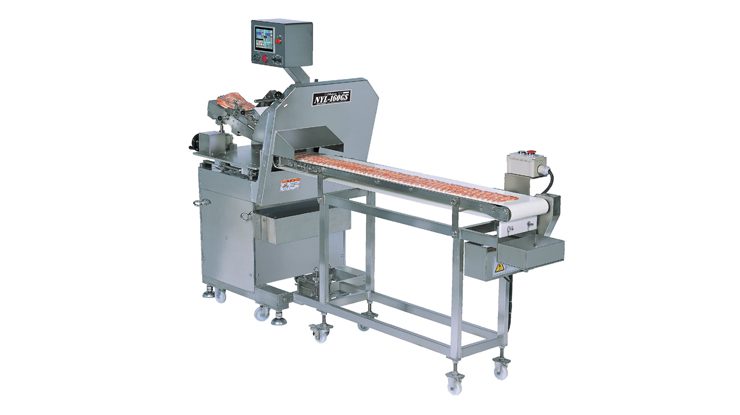

Multi Slicer
NYL-160GS
The lenght of the standardly equipped conveyor is 1.5 m but the length can be changed as option
●Slice angle from 0° to 65° (angle can be changed during operation).
●Highest speed at 200 pieces/min.
●Suitable for thin and thick slices of other ingredients including grilled meat, raw fish, and salmon.
●Color touch panel display for clear operation.
●Arrangement is flexible, and intermittent feed can be set as desired!
★Stainless special blade steel is used.
●Interlocking mechanism is used for safety.
●Compact and space-saving.
NYL-160GS Specifications
| Machine Dimensions | W760 x D967 x H1455mm |
|---|---|
| Machine Weight | 240kg |
| Motor Capacity | For feeder 0.4kW For round blade: 0.4kW (AC servo) |
| Power Consumption | 0.24kW (50Hz/60Hz no load) |
| Sliceable Dimensions | W160~H40mm |
| Slicing Performance | Maximum 200 pieces/min |
| Slice Thickness | (0)~30mm |
| Applicable Temperature | -2℃~+2℃ (meat products) -6℃~+3℃ (marine products) *Varies slightly depending on the thickness, texture and shape of the meat |
| Diagonal Cutting Surface Angle | 0°~65° can change when operating |
Conveyor
| Conveyor Dimensions | W370 (belt W220) x D1500 x H870mm |
|---|---|
| Conveyor Weight | 50kg |
| Motor Capacity | 0.09kW |
| Conveyor Speed | 0~10m/min |

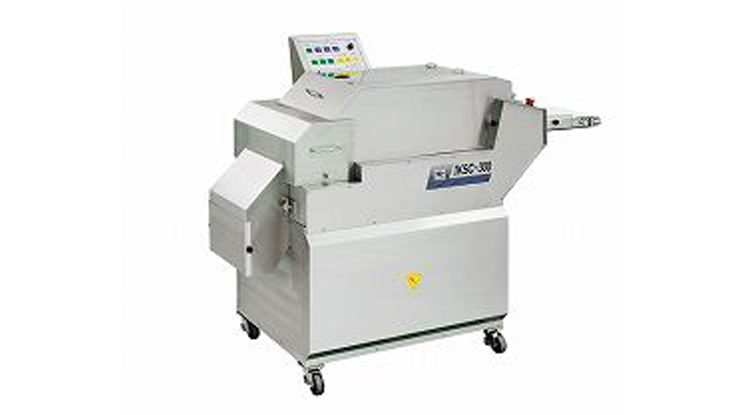

High Speed Dicing Machine
IKSC-300
Freely cut the size and length of meat
Slice example: Cube slice, Chopped slice, Flake slice
●Freely cut the size and length of meat.
●Can sliced from chilled to frozen meat.
●High speed processing and high workability.
●The sensor-based interlocking mechanism is perfect for safe and secure work.
●Various dimensions can be achieved by replacing the replacement blade (replacement blade sold separately).
IKSC-300 Specifications
| Machine Dimensions | W1601 x D741 x H1232mm |
|---|---|
| Machine Weight | About 310kg |
| Motor Capacity | First cut 0.4kW Second cut 1.5kW Central conveyor 0.2kW |
| Sliceable Dimensions | W260 x H(below first cut pitch) mm |
| Slicing Performance | 30rpm ~1100rpm |
| Slice Thickness | First cut 6~30mm, Second cut 5~70mm |
| Applicable Temperature | -6℃~-2℃ |
| Size of replaceable blabe | 6 /8 /10 /15 /20 /25 /30mm (comes with 1 set as standard) |
| Processing Power | 450kg/hr (10 x 10mm cut) |

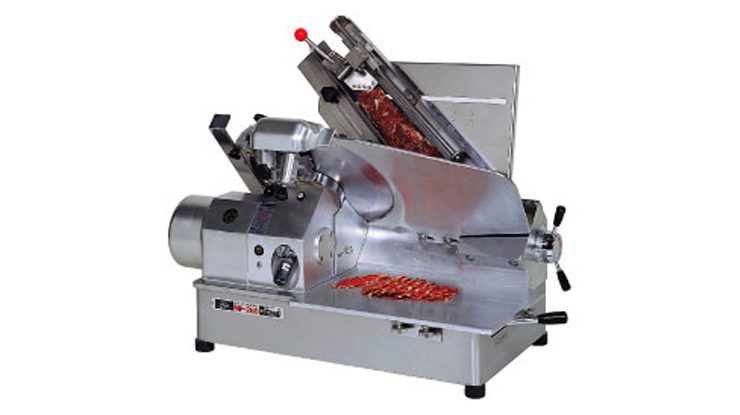

Diagonal Slicer
NF-280AA
●Slice frozen meat or barbecued meat such as belly meat that is not thick (-1°C to -7°C), diagonally, and slice wider and longer.
●The width and length of slice surface is 1.5x more.
●Perfect for slicing the outside skirt.
●The angle of the diagonal (two directions) can be easily adjusted.
NF-280AA Specifications
| Machine Dimensions | W930 x D576 x H980mm |
|---|---|
| Machine Weight | 95kg |
| Motor Capacity | 1.1kW |
| Power Consumption | 0.33kW/0.3kW 50Hz/60Hz |
| Slicable Dimensions | Diagonal cut W135 x H40 x L500mm Diagonal’s diagonal cut W95 x H40 x L500mm (Width aligned effective dimension: minimum 67mm) |
| Slicing Performance | 42 pieces/min (50Hz), 50 pieces/min (60Hz) |
| Slice Thickness | (0)~25mm |
| Applicable Temperature | -8℃~-2℃ |
| Diagonal Cutting Angle | 20°~45°/0°~45° |
