Borncut -Our Portioncutter family

Model BC 225D Dual lane Portionscutter

Model BC 225S Single lane portioncutter

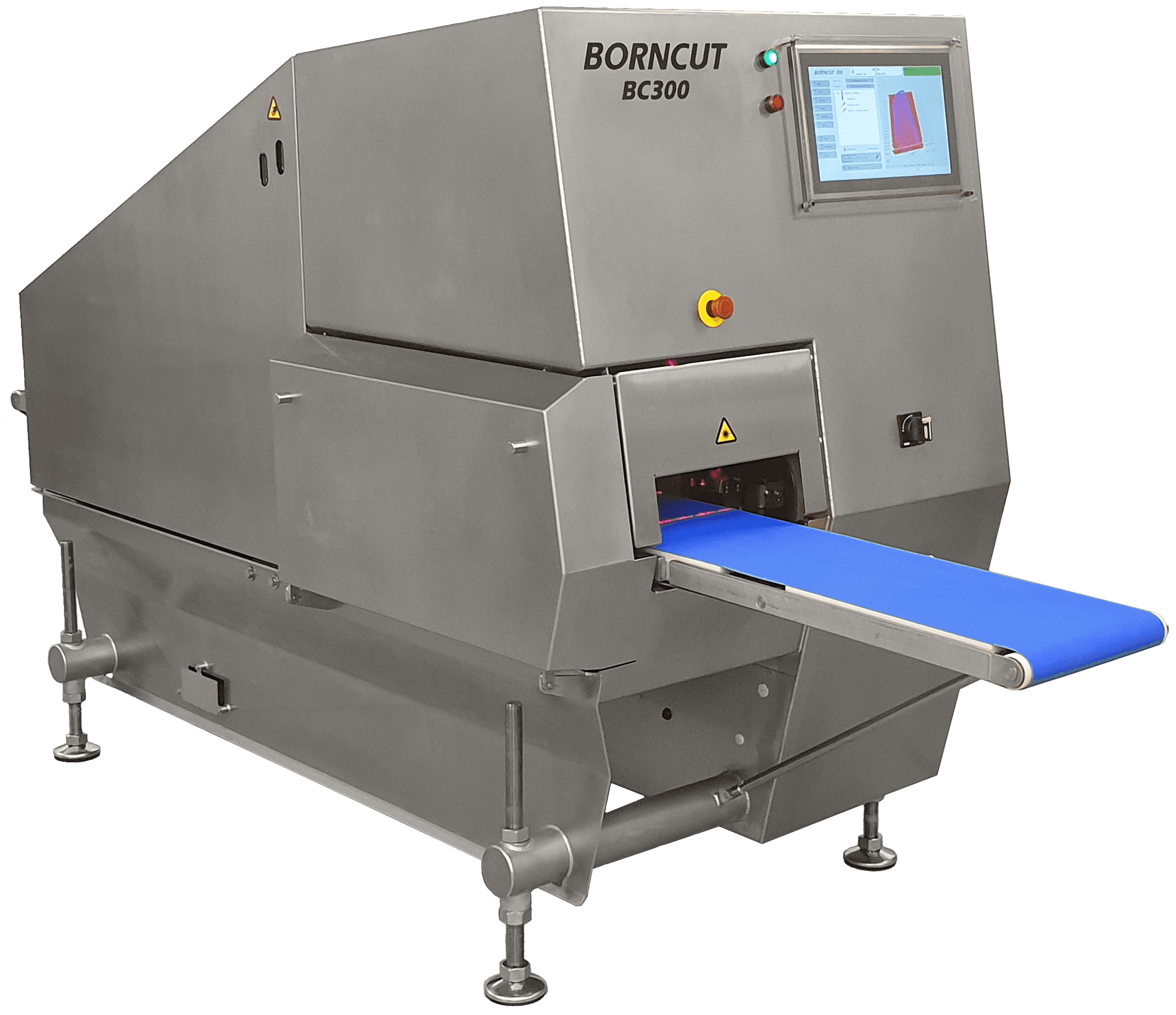

Model BC 300-3 Single lane – meat

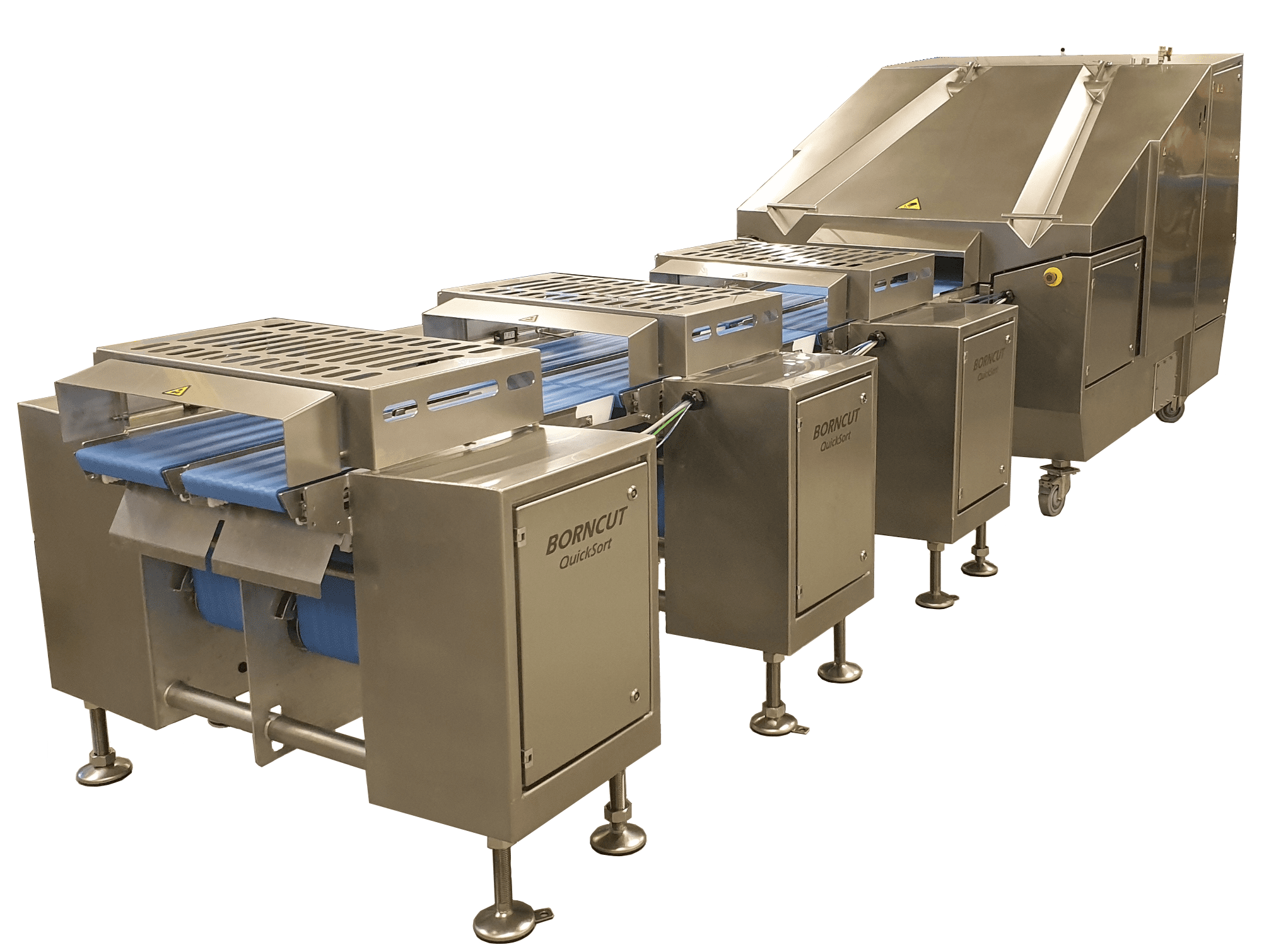

Quick-sorter – Inline

Highlights
Precise, high-speed cutting of fish, poultry and meats.

The Portioncutter is the ultimate, high-speed cutting machine for lean production of fresh fish, poultry and meat. With a cutting frequency of up to 2 times 2,170 strokes per minute the Portioncutter produces precise, fixed-weight portions while reducing give-away and maintaining a high yield-percentage.



Advanced technology results in unbeaten accuracy

Incorporating a high-resolution 250 Hz camera, advanced servo-technology, precise laser system and the advanced software-system for calculating the product density and converting the product data to cutting specs, the Portioncutter is capable of handling cutting jobs with unprecedented speeds and precision.

Flexible Cutting Angles

The knife ring allows for quick and easy adjustment  of the cutting angle. The knife ring can be set to cut at up to four variable angles (45, 60, 75 and 90 for example), which can be customer-predefined. Once set, no manual adjustment of the knife is required.

Several cutting applications
The Portioncutter has a wide range of software applications, tailored to cutting fish, poultry or meat in the most optimum way. Once the product has been scanned, the computer instantly calculates how to cut the product and the machine starts cutting the product into pieces, which all remains precisely within the specifications.

Userfriendly HMI

The machine is operated by the large 15,6”, userfriendly HMI multi touch screen, which guides the operator through the sequences. The system also features a simulation function, which – based on previous historical production data –assists the operator in setting up the optimum cutting pattern.

Main benefits

• Minimum cutting loss
• Maximum product control
• Flexible cutting angles
• Sturdy, hygienic design
• Effective cleaning
• Space-saving, flexible design

Smart features

• High-Speed: up to 2 times 2,170 strokes per minute
• High yield and low give-away
• Fast payback
• Hygienic and easy-to-clean
• User-friendly touch-screen
• Build to last

Borncut 225 (PDF)
Borncut 300 (PDF)
