AFP Series – Far infrared automatic fryer, gas type, electric type
For tofu
High efficiency, durability, and increased productivity for cost reduction!
AFP-015MG, AFP-030MG, AFP-040MG, AFP-050MG
Product Features
All fryers use far-infrared rays, allowing for ideal cooking.
FEATURES 01: Reduce costs with high efficiency, durability, and increased productivity!

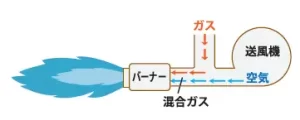

By adopting a highly efficient blast burner, we have achieved an astonishing thermal efficiency of 70%!
Temperature rises by more than 7°C per minute, and start-up time is 25 to 30 minutes. Heat is supplied quickly because the amount of effectively utilized thermal energy is about twice as high as conventional methods. Temperature drop is small when turned on, and recovery time is fast, so food always comes out crispy. Temperature control is performed by PID control to efficiently burn the burner.
You can buy machines using alternative energy sources to gas
If you use a fryer with a thermal efficiency of 35% for 8 hours a day, after the new fryer is delivered, your monthly gas bill will go from 180,000 yen to 90,000 yen (Eco mode), effectively saving 90,000 yen a month. Over the course of a year, you’ll save about 1,080,000 yen! (Calculated based on LPG gas @1kg = 100 yen, actual results for AFP-040MG)
Reduces oil volume and oil deterioration
The structure minimizes the amount of oil that is stored, resulting in a high oil turnover rate and oil conservation.
By preventing localized overheating in the combustion unit, oil lasts 20 to 30% longer than before.
Increase production capacity

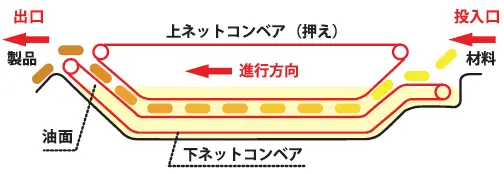

Balance net type, submersible type

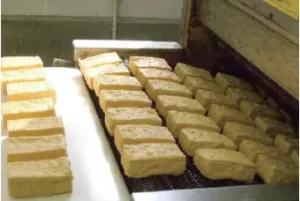

Production capacity (AFP-040MG)
Processing volume per hour: 1564 blocks of tofu
Size: 90 x 90 x 32mm
Fry Time: 3 minutes 30 seconds
This is an estimated value when 5 rows x 125 pitches are used.

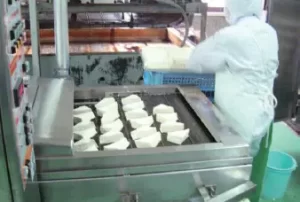

Manual insertion section (AFP-040MG) Automatic feeding unit (AFP-050LF)

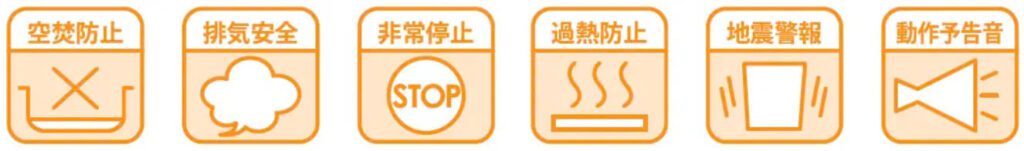

FEATURES 02: Extensive safety features
Lineup
Manual lifting type (flip-up)
Small return type
AFP-015M In the raised position Insertion section
The basket return system allows one person to load and unload items even in a small space.
Medium Type
AFP-030MG In the raised position Insertion section
It has a higher production capacity than the small return type, and it also saves space and energy.
Automatic lifting
Large type
AFP-040MG Lifted and lowered state Manual input type
Running costs are half of conventional models. Temperature drop is minimal, making it suitable for mass production.
Large type

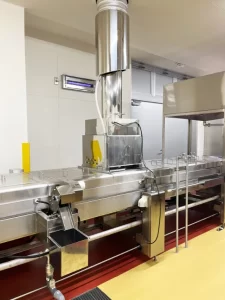

AFP-050MG Lifted and lowered state Automatic input type
Automatic feeding type where the product is fed directly into the fryer from the automatic solidification molding machine.

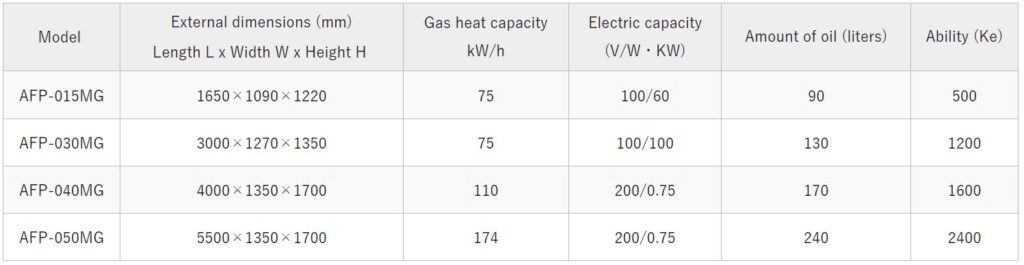

Specification
*Specifications are subject to change without notice for improvement.
*Capacity is an estimated value when frying a thick fried tofu (90 x 90 x 32 mm) in 3 minutes and 30 seconds.
*Wide type is also available.
*The amount of oil is the value when the net is 35 mm apart.
Option

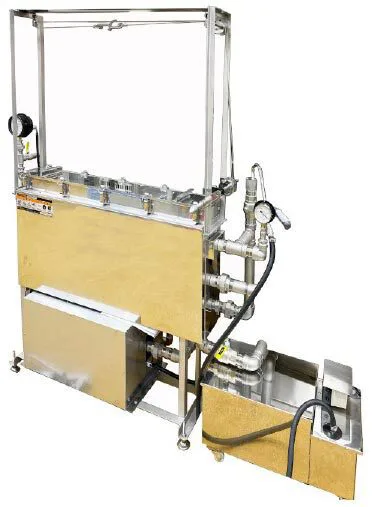

Circulation filtration equipment
Improves frying quality and oil retention. Various types are available depending on frying amount and production time.
Oil smoke recovery device
By inserting a special filter into the top cover of the fryer, oil smoke can be removed.
Replacement is also easy.
By eliminating the hood, fires and hot air in the duct are prevented, improving the working environment.
*Please clean the filter about once a week.
(Adjust the frequency of cleaning depending on how dirty it is.)
