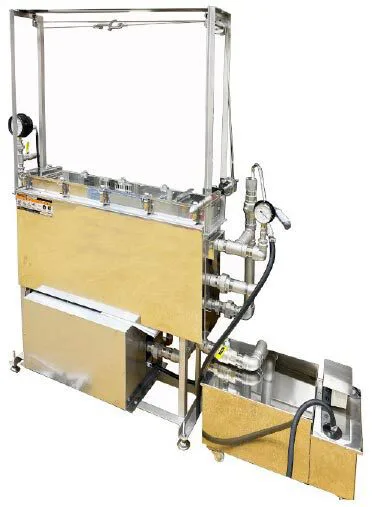

AFC Series – Infrared automatic fryer gas type
For cold food
Designed with durability and productivity in mind for long-term, large-volume cooking.

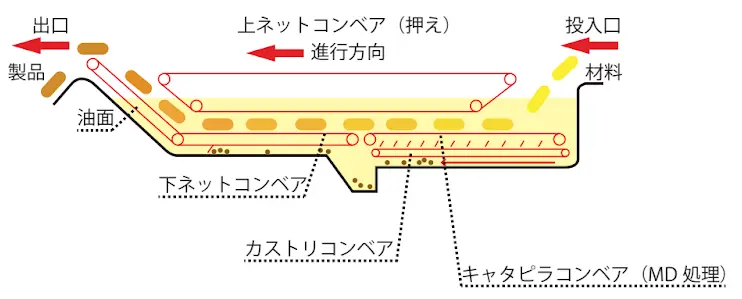

The structure prevents fried food debris from accumulating inside the fryer, improving productivity.
AFC-042MG, AFC-052MG, AFC-062MG
Product Features
All fryers use far-infrared rays, allowing for ideal cooking.
FEATURES 01: Far infrared cooking
The difference in taste is just that much
Linear infrared rays are radiated directly to unheated objects and have a strong heat penetration effect. They are effective in bringing out the flavor of the ingredients. This effect can also be seen in stones, soil, and wood, and is used in familiar foods such as stone-baked sweet potatoes, charcoal-grilled sweet potatoes, and Tianjin sweet chestnuts.

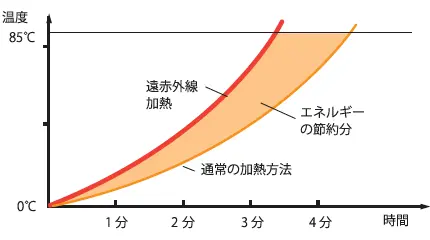

- Quick temperature rise
- The effect of making the most of the flavor of the ingredients
- Satisfying results even when the temperature is reduced by 10-30%
- Low temperature cooking reduces oil deterioration and costs
FEATURES 02: Reduce costs with high efficiency, durability, and increased productivity!
By adopting a highly efficient blast burner, we have achieved an astonishing thermal efficiency of 70%!
Temperature rises by more than 7°C per minute, and start-up time is 25 to 30 minutes. Heat is supplied quickly because the amount of effectively utilized thermal energy is about twice as high as conventional methods. Temperature drop is small when turned on, and recovery time is fast, so food always comes out crispy. Temperature control is performed by PID control to efficiently burn the burner.
You can buy machines using alternative energy sources to gas
If you use a fryer with a thermal efficiency of 35% for 8 hours a day, after the new fryer is installed, your monthly gas bill will go from 220,000 yen to 140,000 yen (Eco mode), effectively saving 80,000 yen a month. Over the course of a year, you’ll save about 960,000 yen! (Calculated based on LPG gas @ 1kg = 100 yen)
Reduces oil volume and oil deterioration
The structure minimizes the amount of oil that is stored, resulting in a high oil turnover rate and oil conservation.
By preventing localized overheating in the combustion unit, oil lasts 20 to 30% longer than before.
FEATURES 03: Easy to use
The batter doesn’t come off and the finish is beautiful.
By using micro-dimple processing on the caterpillar conveyor, the finish of coated products is improved.
Easy to clean
The automatic lifting device makes it easy to clean the inside of the conveyor. *The pressure conveyor can also be lifted independently.
The durability of the wiring has also been improved!
Easy removal of fried debris
It also automatically removes fried food residue from the bottom of the sink.

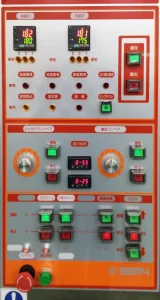

Customized Operations
It allows fine adjustments and is suitable for customized cold food fryers.
FEATURES 04: Extensive safety features

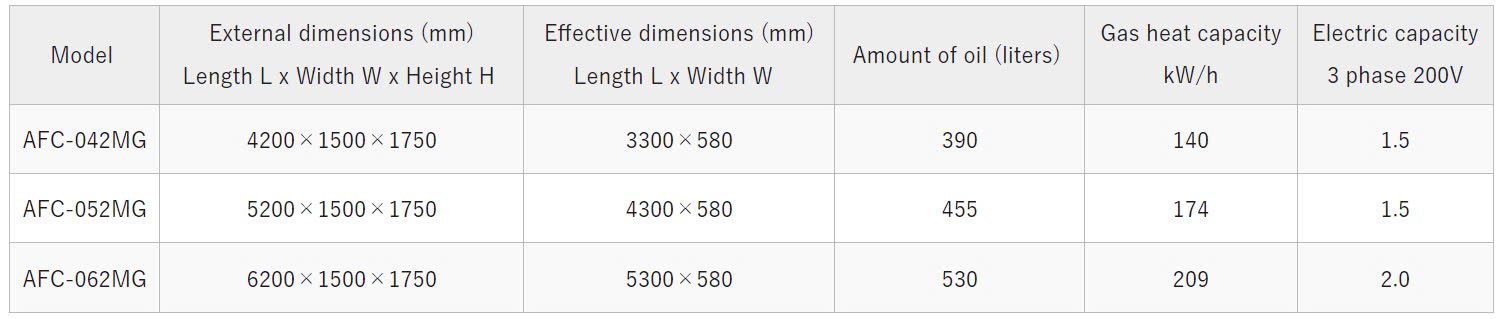

Specification
*Length can be manufactured in 1m increments up to 120MG.
*Width is M=600mm L=750mm W=900mm Z=1000mm
*Capacity varies depending on the food being fried, so please contact our sales representative.
*Full net type (AFN series) is also available.
*Oil volume is measured with the net distance 25mm.
Option
Final Filtration Equipment
Improves frying quality and oil retention. Various types are available depending on frying amount and production time.
Oil smoke recovery device
By inserting a special filter into the top cover of the fryer, oil smoke can be removed. Replacement is also easy.
By eliminating the hood, fires and hot air in the duct are prevented, improving the working environment.
*Please clean the filter about once a week.
(Adjust the frequency of cleaning depending on how dirty it is.)
